Heat-resistant tag

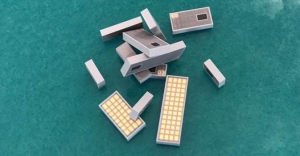

TAGATTM C Series

Heat-resistant and super small RF tags offer you new solutions

 When conventional RF tags are put on the surface of metal materials, their read distance will be decreased, being suffered from the radio-frequency interference from the metal. In the IoT oriented society like today, metal mount RF tag is necessary, but it also needs to be heat-resistant and durable enough. TAGATTM C series is our state of the art product made of durable and heat-proof ceramic case and integrated IC and antenna for offering the best solutions for the heat process related industries.
 TAGAT® C can be fixed on the motherboard by solder, because the tag can stand up to 300℃ (572℉) for 1 hour.
It's very small tag but has a long read distance. See the spec sheet for the details.

Reflowable tag (black-coated one near center of the photo)


There's no need to electrically-bind the metal parts on the back on the board.


スクロールしてご覧いただけます。

Product name TAGATTM 30X00C TAGATTM 18X00C TAGATTM 50X00C TAGATTM 75X00C
Frequency(MHz) X:E 865 - 868
X:U, JIN 902 - 924
X:U, JIN 902 - 924
Read distance
On ー Metal (m)
0.4 - 0.7 0.4 - 0.7 1 - 2 2 - 3
Memory size(bit) EPC:96 User:512   EPC:96
Dimensions(mm)
(W)×(H)×(T)
10 × 3 × 1.7 6 × 3 × 1.7 10 × 5 × 1.7 15 × 5 × 1.7
Weight(g) 0.2 0.1 0.3 0.4
IP Protection rating IP67
Operating temperature(℃) ー 40 〜 + 85℃ (-40℉~185℉)
Reflow (Soldering) Possible Depends on conditions (Contact us
Application Motherboard traking, mold traking, painting process control, tracability management of medical devices in CSSD, etc.
  Results (ongoing for update)
High temperature(150℃/302℉) 1500hr
(220℃/428℉) 1000hr
(300℃/572℉) 1hr
Steam sterilization 135℃/275℉ × 2bar × 20min 350 times
Reflowing(290℃/554℉) 2 times
Temperature and Humidity Controlled Test
 85℃/185℉ / 85%RH
1500hr
Heat cycle
-40℃/-40℉ ⇔ 125℃/257℉ × 30min each
500 times
