Thermolabel™-3E

HOME > English_TOP > NiGK Product lineup > Temperature indicating materials > Thermolabel™-3E
Package design

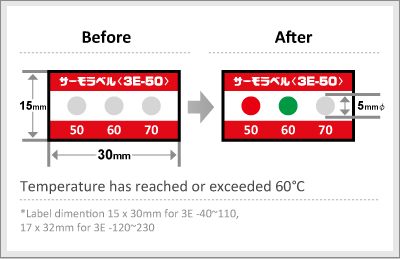

How color changes


Triple point indicator at 10℃ intervals upto 250℃

Temperature range:40~250℃
40pcs/pkg
RoHS Compliant




Three small indicators at 10℃ of intervals are printed on a single label to monitor three different threshold temperatures. Each indicator changes to different color when reaches to set temperature. This type is widely used for a wide area of application for temperature monitoring indoors or outdoors.  Power company, transmit equiment and temperature control of machinary to prevent accident or to optimize security control.

Reversible Irreversible Semi-reversible


Product feature

  • 3 steps temperature indication
  • Irreversible, single-use
  • Temperature range: 40°C to 250°C
  • Color change method utilize melting point of refined stable meltable pigment to achieve high accuracy.
  • Color change element is completely sealed in heat-resistant film to avoid environmental affect such as water, chemical, oil etc…
  • Self-adhesive and easy to apply on various location. (The back side is coated with heat resistant adhesive material)

スクロールしてご覧いただけます。



Product number Temperature
combination(℃)
Accuracy JAN Code
3E-40 40-50-60 ±2℃ 4582130420485
3E-45 45-55-65 ±2℃ 4582130420492
3E-50 50-60-70 ±2℃ 4582130420508
3E-55 55-65-75 ±2℃ 4582130420515
3E-60 60-70-80 ±2℃ 4582130420522
3E-65 65-75-85 ±2℃ 4582130420539
3E-70 70-80-90 ±2℃ 4582130420546
3E-75 75-85-95 ±2℃ 4582130420553
3E-80 80-90-100 ±2℃ 4582130420560
3E-85 85-95-105 ±2℃ 4582130420577
3E-90 90-100-110 ±2℃ 4582130420584
3E-95 95-105-115 ±2℃ 4582130420591
3E-100 100-110-120 ±2℃  4582130420607
3E-105 105-115-125 ±2℃ 4582130420614
3E-110 110-120-130 ±2℃  4582130420621
3E-120 120-130-140 ±2℃ 4582130420638
3E-130 130-140-150 ±2℃ 4582130420645
3E-140 140-150-160 ±2℃ 4582130420652
3E-150 150-160-170 ±2℃ 4582130420669
3E-160 160-170-180 ±2〜3℃ 4582130420676
3E-170 170-180-190 ±2〜3℃ 4582130420683
3E-180 180-190-200 ±3℃ 4582130420690
3E-190 190-200-210 ±3℃ 4582130420706
3E-200 200-210-220 ±3℃ 4582130420713
3E-210 210-220-230 ±3℃ 4582130420720
3E-220 220-230-240 ±3℃ 4582130420737
3E-230 230-240-250 ±3℃ 4582130420744

Usage

Apply where temperature monitoring is required.

Usage consideration

  • Do not rub the color changing part. This may cause abnormal color change.
  • Apply on a clean and dry surface.
  • Apply on flat surface. THERMO LABEL® 3E might drop from uneven applying surface.
  • Avoid applying on curved surface and bending indicators.
  • Do not cut THERMO LABEL®3E. This may reduce the durability of product and cause abnormal color change.

Precautions

Color change

  • The color change temperature and its accuracy were determined in room temperature with 2-3℃/min of heating rate. Under special condition, color change temperature might be changed.
  • The color change element which color change temperature is greater than or equal to 130℃ might cause performance shift by heating in high temperature longer than 1 hour.

Applying label

  • Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
  • Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
  • Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
  • Do not change shape of products. Cutting products with a cutter knife or re-shaping can reduce the durability and cause abnormal color change.

Usage

  • Do not use electromagnetic induction heating, for example, microwave oven, under high pressure condition and high vacuum condition.
  • Do not use THERMO LABEL® 3E under plasticizer* affected condition. When THERMO LABEL® 3E absorbs the plasticizer, indicator may change color and/or may impact adhesion of THERMO LABEL® 3E. *Plasticizer may be contained in insulating coating of electrical cable, terminal cap and vinyl chloride resin.


Information on the toxic substance in the raw material

THERMO LABEL®3E contains no toxic substance according GHS classification except from 3E-90, 100, 110, 120, 180, 190, 200, 210, 220 and 230. Please refer to MSDS of appropriate products for detail.



Directive of RoHS

THERMO LABEL® 4E doesn’t contain chemical substance prohibited in the RoHS directive.



Hazards identification

Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.



Disclaimer

The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade. The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
