Easy and accurate UV indicator label widely used for UV curing injection molding and UV ink printing.UV LabelTM is single-use indicators irreversibly changes its color from white to various color by ultraviolet light irradiation. The products of 5 types (S, H, M, L, LED-1) are available depends on the sensitivity or the wavelength required.
The most polular application is for curing process monitoring in UV curing injection moding process and UV ink printing process.

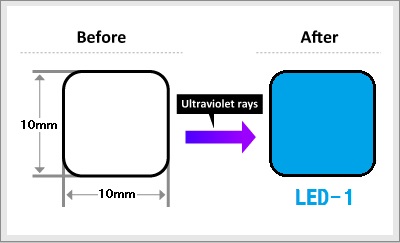

Apperance of the label (LED-1) NEW!

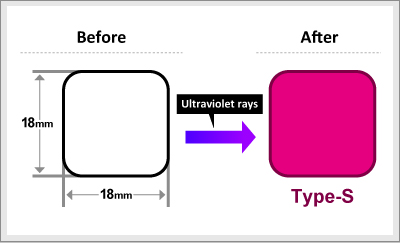

Apperance of the label (S, H, M, L)
SpecificationsNumber of element: One
Appearance of the package (LED-1) NEW!
Appearance of the package (S, H, M, L)
- Irreversible, single-use
- The products of 5 types (S, H, M, L, LED-1) are available depends on the sensitivity or the wavelength.
- Self-adhesive and easy to apply on various location (The back side adhesive material).
Product type and color chart
*Color tone and irradiance level shown above are based on factory tests conducted by using mercury lamp. The color tone and radiation reading may differ according to radiation conditions.
*LED-1 label changes from white to vivid blue. There is high sensitivity against around UVA range like 365, 385, 395 and 405 nm.
Apply where ultraviolet irradiation monitoring is required.
- Please check the color changing condition before use. The color tone and radiation reading may differ according to radiation conditions.
- Interior lamp and lighting can cause color change. Avoid any irradiation before use.
- Store always in black light blocking film which comes with product.
- Avoid direct contact on skin
- Apply on a clean and dry surface.
- Apply on flat surface. The label might drop from uneven applying surface.
- Size, shape and design customization is available.
- Sensitivity and color tone should be based on standard products.
- Prices differ from its design and order qty. Please contact our sales office for further information.
- Tape shape for monitoring process flow
- Small shape for narrow space
- Others: Word shape and various shapes are available. Large size can be used for irradiation distribution monitoring.
Store unused products in black light blocking film which comes with product. Avoid any irradiation before use. Interior lamp and lighting can cause color change.
Avoid high temperature and excessive humidity. Store in room temperature.
- Store always in black light blocking film which comes with product. Avoid any irradiation before use.
- Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
- Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
- Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
Information on the toxic substance in the raw material
UV LabelTM contains no toxic substance according GHS classification.
Directive of RoHS
UV LabelTM doesn’t contain chemical substance prohibited in the RoHS directive.
Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.
The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade. The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
