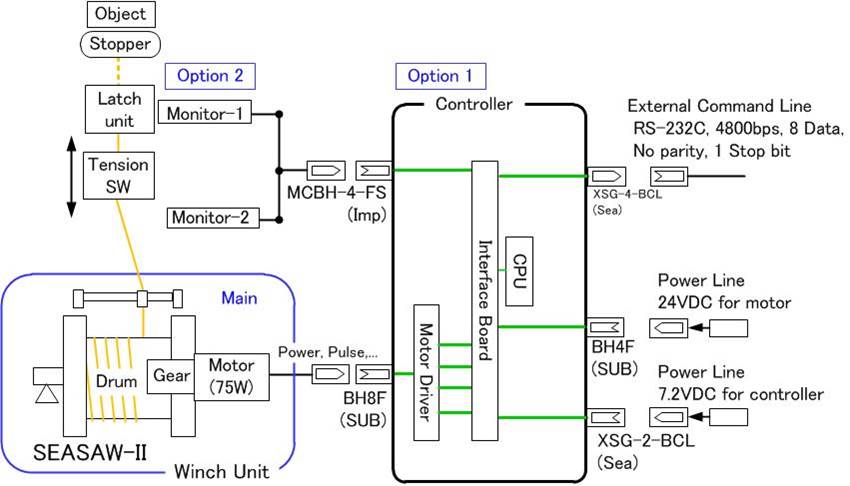

Outline of mechanism
(Battery Drive Model)

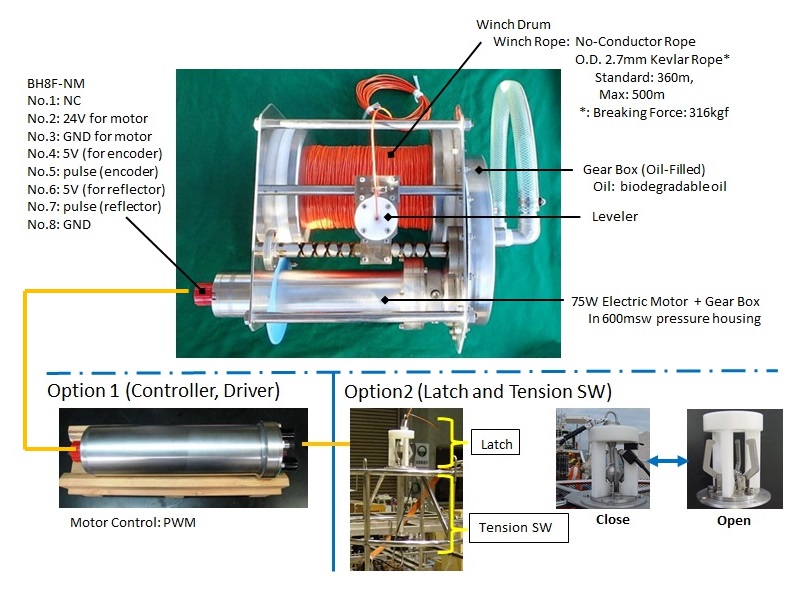

SEASAW-II Winch Component (Main)

Max. water depth: 500msw (depend on pressure housing)
Weight: approx. 45kg (air) / 30kgf (water)
Dimensions: 700 x 520 x H500 mm
Input: 24VDC approx. 2A@8Nm
Output: Nominal Torque: 8Nm
Speed: approx. 18m/min (Out) / 9m/min (in)
