― Usage Example ―
-

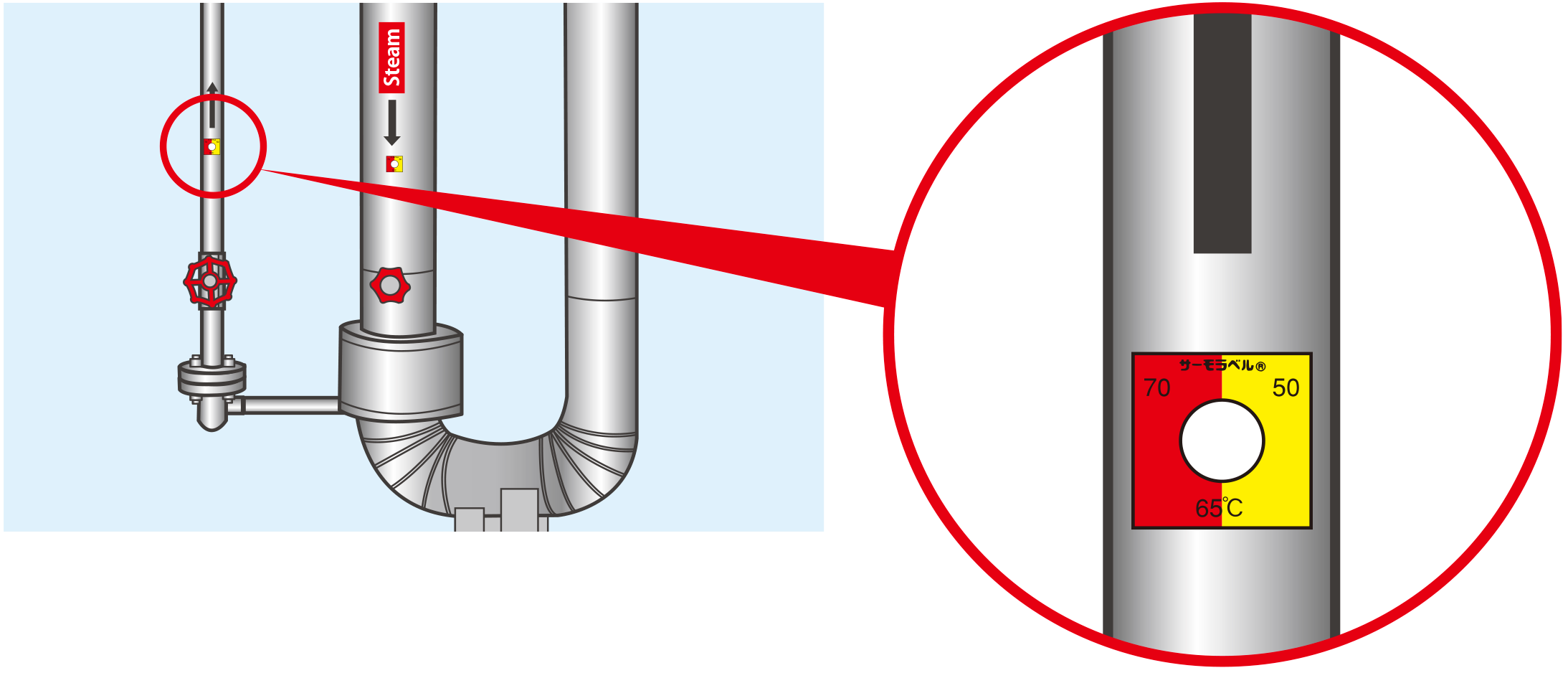

Pipings for steam or hot water
Example of affixing TB-65
Combination label-TB
Color transition simulation
Irreversible plus reversible indicator to check current and past temperature
Temperature range：65～90℃
40pcs/pkg
Non-RoHS compliant
This combination label consists of an irreversible temperature-indicating element (temperature label)
at the center of a reversible THERMOSHEET™ base.
Trace temperature history with the irreversible label and current temperature with the reversible sheet.
40pcs/pkg
Non-RoHS compliant
| Reversible | Irreversible | Semi-reversible |
|---|---|---|
| ● | ● |
This combination label consists of an irreversible temperature-indicating element (temperature label)
at the center of a reversible THERMOSHEET™ base.
Trace temperature history with the irreversible label and current temperature with the reversible sheet.
スクロールしてご覧いただけます。
| Type | Temperature indicating element（irreversible） | Base（reversible） | JAN Code | |||
|---|---|---|---|---|---|---|
| Temp （℃） |
Color | Size | Temp （Low← →High） |
Size | ||
| TB-65 | 65 | White→Black | φ11 mm |
70℃ Red←→Dark brown-purple 50℃ Yellow←→Yellowish orange |
30 x 30 mm | 4582130421734 |
| TB-70 | 70 | White→Reddish orange | 4582130421741 | |||
| TB-75 | 75 | White→Dark red | 4582130421758 | |||
| TB-80 | 80 | White→Blue | 4582130421765 | |||
| TB-85 | 85 | White→Deep indigo | 4582130421772 | |||
| TB-90 | 90 | White→Red | 4582130421789 | |||
Structure cross section
