― Usage Example ―
-
Joint of electorical transforming equipment
Example of affixing LI-80
Temperature label-LI
Color transition simulation
Large, visible and durable single-point indicator best for interpretation from a distance
Number of element：One
Temperature range：40～250℃
Content: 40pcs/pkg
RoHS compliant
| Reversible | Irreversible | Semi-reversible |
|---|---|---|
| ● |
The φ8-11mm(φ11mm for Ll-40～105 and φ8mm for Ll-110～250)size indicator has the great visibility from a distance. This highly durable type is widely used for a wide area of applications for temperature monitoring indoors or outdoors. In power company, this type is used for transmit equiment to prevent accident and to optimize security control by controlling temperature. Above all, this type is the best choice for the outdoor temperature monitoring from a distance because of its bigger element size and outstanding durablity.
Product feature
- 1point temperature indication
- Irreversible, single-use
- Temperature range: 40°C to 250°C
- Color changing element is completely sealed in heat-resistant film to avoid environmental affect such as water, chemical, oil etc…
- Self-adhesive and easy to apply on various location. (The back side is coated with heat resistant adhesive material)
スクロールしてご覧いただけます。

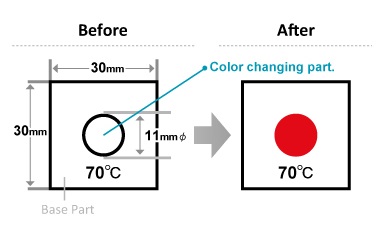

Dimension of reactint element isφ11mm for Ll-40～105 and φ8mm for Ll-110～250
40 pc/ package
| PN | Color chamge temp.（℃） | Before | After | Accuracy | JANCode |
|---|---|---|---|---|---|
| Ll-40 | 40 | White | Blue | ±2℃ | 4582130420010 |
| Ll-45 | 45 | White | Black | ±2℃ | 4582130420027 |
| Ll-50 | 50 | White | Red | ±2℃ | 4582130420034 |
| Ll-55 | 55 | White | Dark Blue | ±2℃ | 4582130420041 |
| Ll-60 | 60 | White | Green | ±2℃ | 4582130420058 |
| Ll-65 | 65 | White | Black | ±2℃ | 4582130420065 |
| Ll-70 | 70 | White | Reddish orange | ±2℃ | 4582130420072 |
| Ll-75 | 75 | White | Dark Red | ±2℃ | 4582130420089 |
| Ll-80 | 80 | White | Blue | ±2℃ | 4582130420096 |
| Ll-85 | 85 | White | Dark Blue | ±2℃ | 4582130420102 |
| Ll-90 | 90 | White | Red | ±2℃ | 4582130420119 |
| Ll-95 | 95 | White | Black | ±2℃ | 4582130420126 |
| Ll-100 | 100 | White | Dark Red | ±2℃ | 4582130420133 |
| Ll-105 | 105 | White | Green | ±2℃ | 4582130420140 |
| Ll-110 | 110 | White | Dark Blue | ±2℃ | 4582130420157 |
| Ll-115 | 115 | White | Reddish Orange | ±2℃ | 4582130420164 |
| Ll-120 | 100 | White | Blue | ±2℃ | 4582130420171 |
| Ll-125 | 125 | White | Black | ±2℃ | 4582130420188 |
| Ll-130 | 130 | White | Black | ±2℃ | 4582130420195 |
| Ll-140 | 140 | White | Black | ±2℃ | 4582130420201 |
| Ll-150 | 150 | White | Black | ±2℃ | 4582130420218 |
| Ll-160 | 160 | White | Black | ±2℃ | 4582130420225 |
| Ll-170 | 170 | Yellow gray | Black | ±2℃ | 4582130420232 |
| Ll-180 | 180 | Pale yellow | Black | ±3℃ | 4582130420249 |
| Ll-190 | 190 | Pale yellow | Black | ±3℃ | 4582130420256 |
| Ll-200 | 200 | Pale yellow | Black | ±3℃ | 4582130420263 |
| Ll-210 | 210 | Pale yellow | Black | ±3℃ | 4582130420270 |
| Ll-220 | 220 | Pale yellow | Black | ±3℃ | 4582130420287 |
| Ll-230 | 230 | Pale yellow | Black | ±3℃ | 4582130420294 |
| Ll-240 | 240 | Pale yellow | Black | ±3℃ | 4582130420300 |
| Ll-250 | 250 | Pale yellow | Black | ±3℃ | 4582130420317 |
Storage
Store unused indicators under room temperature and dark condition Avoid high temperature and excessive humidity.
Precautions
Color change
- The color change temperature and its accuracy were determined in room temperature with 2-3℃/min of heating rate. Under special condition, color change temperature might be changed.
- The performance of irreversible temperature labels which change color at 130℃ or higher may be changed if it is exposed to temperatures in the －10℃ from the specified temperature.
Applying label
- Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
- Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
- Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
- Do not change shape of products. Cutting products with a cutter knife or re-shaping can reduce the durability and cause abnormal color change.
Usage
- Do not use electromagnetic induction heating, for example, microwave oven, under high pressure condition and high vacuum condition.
- Do not use temperature label LI under plasticizer* affected condition. When temperature label LI absorbs the plasticizer*, indicator may change color and/or may impact adhesion of temperature label LI. *Plasticizer may be contained in insulating coating of electrical cable, terminal cap and vinyl chloride resin.
Information on the toxic substance in the raw material
Temperature label LI contains no toxic substance according GHS classification except from LI-110, LI-120, LI-180, LI-190, LI-200, LI-210, LI-220, LI-230, LI-240 and LI-250. Please refer to SDS of appropriate products for detail.
Directive of RoHS
Temperature label LI doesn’t contain chemical substance prohibited in the RoHS directive.
Hazards identification
Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.
Disclaimer
The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade. The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
*Temperature label, RETOMARK, MEDESHILL, UVLABEL, DEWLABEL and Thermo-Paint in all the contents including digital catalog in this website are registered trademarks in Japan of NiGK Corporation.
