― Usage Example ―
-

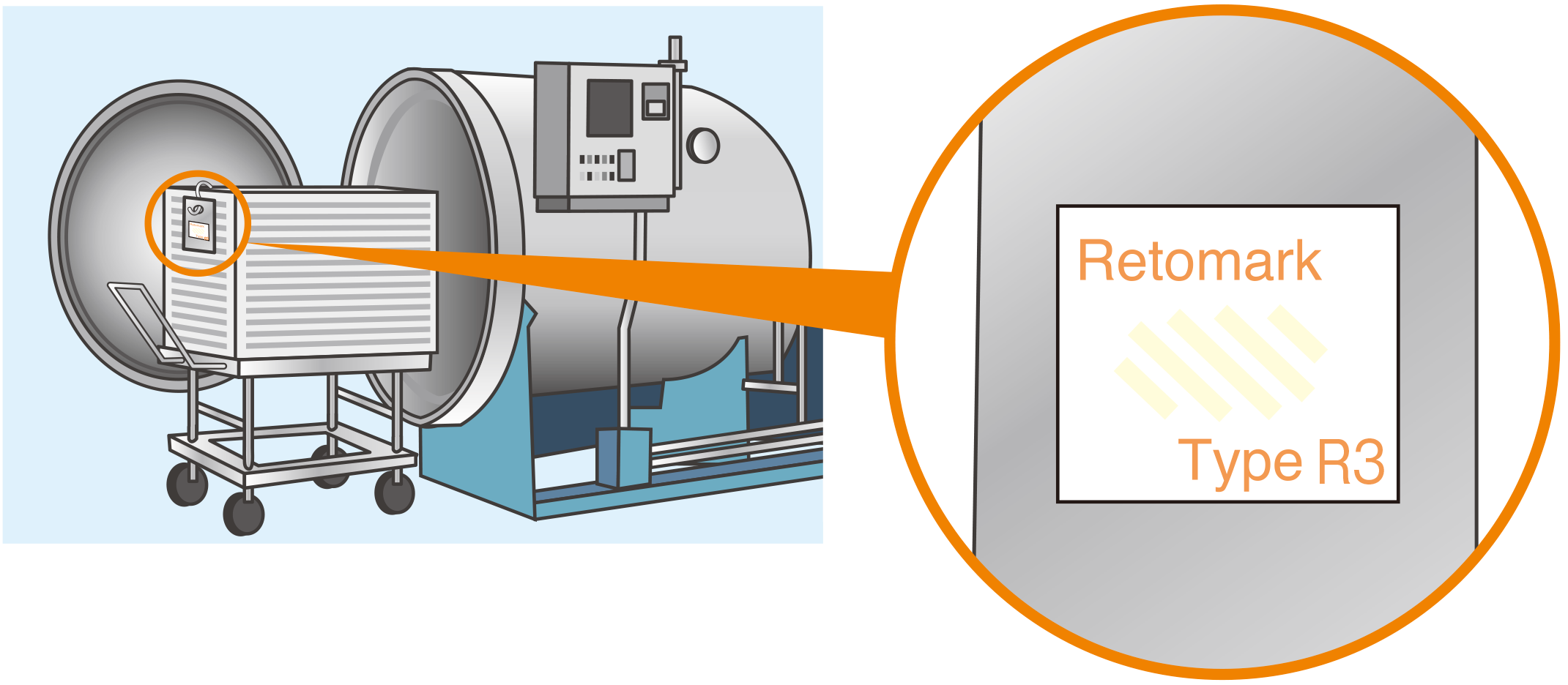

Retort ovens in a food processing
Example of affixing R3
RETOMARK TM
Color transition simulation
Indicator label for pasteurization and sterilization control of sealing pouch
Temperature range：70 to 134℃
500pcs/pkg
RoHS Compliant
RETOMARK™ is Time Temperature Indicator which irreversibly changes its color from cream color to brown by heating at specific temperature for specific period.
| Reversible | Irreversible | Semi-reversible |
|---|---|---|
| ● |
Features
- Time Temperature Indicator
- 3 types of products are available from boiling sterilization to HTST
- Irreversible, single-use
- Color changing period: 5min to 120min
スクロールしてご覧いただけます。
Product line up
| Product Number |
Color Change Temperature（℃） |
Response period （min） |
Application | JAN Code |
|---|---|---|---|---|
| R1 | AC 110～134 | 5～30 | HTST sterilization | 4582130422748 |
| R2 | AC 100～120 | 5～15 | High Temp sterilization | 4582130422755 |
| Boil 90～100 | 30～120 | |||
| R3 | Boil 70～100 | 3～60 | Boil sterilization | 4582130422762 |

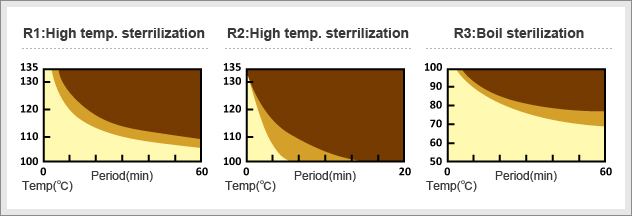

Color Change temperature and period
Usage
Apply where temperature monitoring is required.
Usage consideration
- The sample color tone above may differ from actual color. Please check actual color change under required condition before use.
- Apply on flat surface. RETOMARK™ might drop from uneven applying surface.
- Avoid applying on curved surface and bending indicators.
- Do not cut RETOMARK™. This may reduce the durability of product and cause abnormal color change.
Storage
Please store in refrigerator Storing in room temperature for long time can change the color of RETOMARK™.
Precautions
Applying label
- Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
- Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
- Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
- Do not change shape of products. Cutting products with a cutter knife or re-shaping can reduce the durability and cause abnormal color change.
Usage
- Do not use electromagnetic induction heating, for example, microwave oven, under high pressure condition and high vacuum condition.
Information on the toxic substance in the raw material
Please refer to SDS of RETOMARK™.
Directive of RoHS
RETOMARK™ doesn’t contain chemical substance prohibited in the RoHS directive.
Hazards identification
Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.
Disclaimer
The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade. The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
