Temperature label-
Supermini 1K



Color transition simulation



Very small indicator of 0.5cm2 with single indicator point. Best for small electric or electronic parts

Temperature range:40~125℃
200pcs/pkg
RoHS Compliant
*For indoor use only

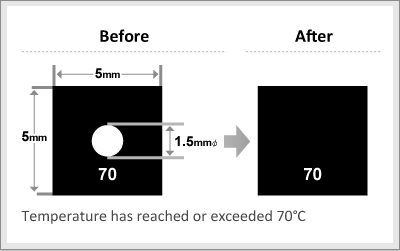

THERMO LABEL ® SUPER MINI 1K is single-use indicators irreversibly change its color from white to black by reaching or exceeding color changing temperature. The indicator element is only φ1.5mm and the label itself is a square 0.5cm on a side. Best suited for temperature control of electronic and electric parts like transistor, IC, capacitor and small motor.
Reversible Irreversible Semi-reversible


Features

  • Extra small design for narrow space and small devices
  • 1 point temperature indication
  • Irreversible, single-use
  • Temperature range: 40℃ to 125℃
  • Self-adhesive and easy to apply on various location. (The back side is coated with heat resistant adhesive material)

スクロールしてご覧いただけます。

Product Name Temperature to change color(℃) Accuracy JAN Code
1K-40 40 ±2℃ 4582130420928
1K-45 45 ±2℃ 4582130420935
1K-50 50 ±2℃ 4582130420942
1K-55 55 ±2℃ 4582130420959
1K-60 60 ±2℃ 4582130420966
1K-65 65 ±2℃ 4582130420973
1K-70 70 ±2℃ 4582130420980
1K-75 75 ±2℃ 4582130420997
1K-80 80 ±2℃ 4582130421000
1K-85 85 ±2℃ 4582130421017
1K-90 90 ±2℃ 4582130421024
1K-95 95 ±2℃ 4582130421031
1K-100 100 ±2℃ 4582130421048
1K-105 105 ±2℃ 4582130421055
1K-110 110 ±2℃ 4582130421062
1K-115 115 ±2℃ 4582130421079
1K-120 120 ±2℃ 4582130421086
1K-125 125 ±2℃ 4582130421093
*White indicator element turns to black at the temperature

Usage

Apply where temperature monitoring is required.

Usage consideration

  • Do not rub the color changing part. This may cause abnormal color change.
  • Apply on flat surface. THERMO LABEL® SUPER MINI 1K might drop from uneven applying surface.
  • Avoid applying on curved surface and bending indicators.
  • Do not cut THERMO LABEL®SUPER MINI 1K. This may reduce the durability of product and cause abnormal color change.


Effective lifetime

Indoor use: 3 years
Outdoor use:THERMO LABEL®SUPERMINI 1K is not designed for outdoor use



Storage

Store unused indicators under room temperature and dark condition Avoid high temperature and excessive humidity.



Precautions

Color change

  • The color change temperature and its accuracy were determined in room temperature with 2-3℃/min of heating rate. Under special condition, color change temperature might be changed.
  • The performance of irreversible temperature labels which change color at 130℃ or higher may be changed if it is exposed to temperatures in the -10℃ from the specified temperature.

Applying label

  • Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
  • Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
  • Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
  • Do not change shape of products. Cutting products with a cutter knife or re-shaping can reduce the durability and cause abnormal color change.

Usage

  • Do not use electromagnetic induction heating, for example, microwave oven, under high pressure condition and high vacuum condition.
  • THERMO LABEL®SUPERMINI 1K is not designed for outdoor use.
  • Do not use THERMO LABEL®SUPERMINI 1K under liquid (such as water, oil, grease, plasticizer* or solvent) affected condition. When THERMO LABEL®SUPERMINI 1K absorbs the liquid, indicator may change color and/or may impact adhesion of THERMO LABEL®SUPERMINI 1K.
    *Plasticizer may be contained in insulating coating of electrical cable, terminal cap and vinyl chloride resin.


Information on the toxic substance in the raw material

THERMO LABEL®SUPER MINI 1K contains no toxic substance according GHS classification except from 1K-115 and 120. Please refer to SDS of appropriate products for detail.



Directive of RoHS

THERMO LABEL®SUPERMINI 1K doesn’t contain chemical substance prohibited in the RoHS directive.



Hazards identification

Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.



Disclaimer

The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade. The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
