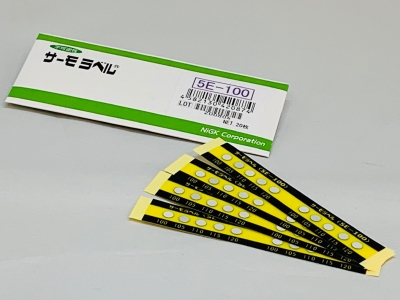

Temperature label-5E
Color transition simulation
Five measuring points at 10℃ or 5℃ intervals on one label
Number of element: Five
Temperature range：50～250℃
Content: 20pcs/pkg
RoHS compliant
| Reversible | Irreversible | Semi-reversible |
|---|---|---|
| ● |
THERMO LABEL5E single-use indicators irreversibly change its color from white/pale yellow to black by reaching or exceeding color changing temperature.
At 5℃ interval upto 130℃ and at 10℃ interval from 130℃ and more.
Product feature
- 5 level temperature indication
- Irreversible, single-use
- Available in 2 types / 5℃ increment and 10℃ increment
- Color change element is completely sealed in heat-resistant film to avoid environmental affect such as water, chemical, oil etc…
- Self-adhesive and easy to apply on various location. (The back side is coated with heat resistant adhesive material)
スクロールしてご覧いただけます。
| Product number | Temperature combination（℃） | Before | After | Accuracy | JAN Code |
|---|---|---|---|---|---|
| 5E-50 | 50-55-60-65-70 | white | black | ±2℃ | 4582130420751 |
| 5E-75 | 75-80-85-90-95 | white | black | ±2℃ | 4582130420867 |
| 5E-100 | 100-105-110-115-120 | white | black | ±2℃ | 4582130420874 |
| 5E-125 | 125-130-140-150-160 | white | black | ±2℃ | 4582130420881 |
| 5E-170 | 170-180-190-200-210 | Pale yellow | black | ±2-3℃ | 4582130420898 |
| 5E-210 | 210-220-230-240-250 | Pale yellow | black | ±3℃ | 4582130420904 |
Usage
Apply where temperature monitoring is required.
Usage consideration
- Do not rub the color changing part. This may cause abnormal color change.
- Apply on a clean and dry surface.
- Apply on flat surface. THERMO LABEL® 5E might drop from uneven applying surface.
- Avoid applying on curved surface and bending indicators.
- Do not cut THERMO LABEL®5E. This may reduce the durability of product and cause abnormal color change.
Effective lifetime
Indoor use: 5 years
Outdoor use:3 years
Storage
Store unused indicators under room temperature and dark condition Avoid high temperature and excessive humidity.
Precautions
Color change
- The color change temperature and its accuracy were determined in room temperature with 2-3℃/min of heating rate. Under special condition, color change temperature might be changed.
- The performance of irreversible temperature labels which change color at 130℃ or higher may be changed if it is exposed to temperatures in the －10℃ from the specified temperature.
Applying label
- Remove water, oil, rust and dust from the surface before applying labels. Contamination and uneven surfaces can cause labels to drop and abnormal color change.
- Remove release film and apply where temperature monitoring is required and press the surface of label gently with finger or cloth. Strong rubbing might damage the label and affect performance (abnormal color change).
- Apply labels on flat surface. Labels are not designed to apply on curved and corner surface.
- Do not change shape of products. Cutting products with a cutter knife or re-shaping can reduce the durability and cause abnormal color change.
Usage
- Do not use electromagnetic induction heating, for example, microwave oven, under high pressure condition and high vacuum condition.
- Do not use in outdoor. THERMO LABEL MINI is not designed for outdoor use
- Do not use THERMO LABEL 5E under liquid plasticizer* affected condition. When THERMO LABEL 5E absorbs the plasticizer, central white circle may change its color and/or may impact adhesion of THERMO LABEL 5E.
*Plasticizer may be contained in insulating coating of electrical cable, terminal cap and vinyl chloride resin.
Information on the toxic substance in the raw material
THERMO LABEL® 5E contains no toxic substance according GHS classification except from 5E-100, 170 and 210.
Please refer to SDS of appropriate products for detail.
Directive of RoHS
THERMO LABEL® 5E doesn’t contain chemical substance prohibited in the RoHS directive.
Hazards identification
Immediate health, physical, and environmental hazards: The environmental properties of this product present a low environmental hazard. This product, when used under reasonable conditions and in accordance with the directions for use, should not present a health hazard. However, use or processing of the product in a manner not in accordance with the product's directions for use may affect the performance of the product and may present potential health and safety hazards.
Disclaimer
The information in this sheet is believed to be correct as of the date of issue Nor the selling, nor the producing company make no warranties, expressed or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose or course of performance or usage of trade.
The user is responsible for determining whether this product is fit for a particular purpose and suitable for user's method of use or application. Given the variety of factors that can affect the use and application of this product, some of which are uniquely within the user's knowledge and control, it is essential that the user evaluate this product to determine whether it is fit for a particular purpose and suitable for user's method of use or application.
